Our Equipments

SIMEX ensures reliability by owning 100% of its core heavy machinery fleet, guaranteeing immediate availability and preventing project delays.

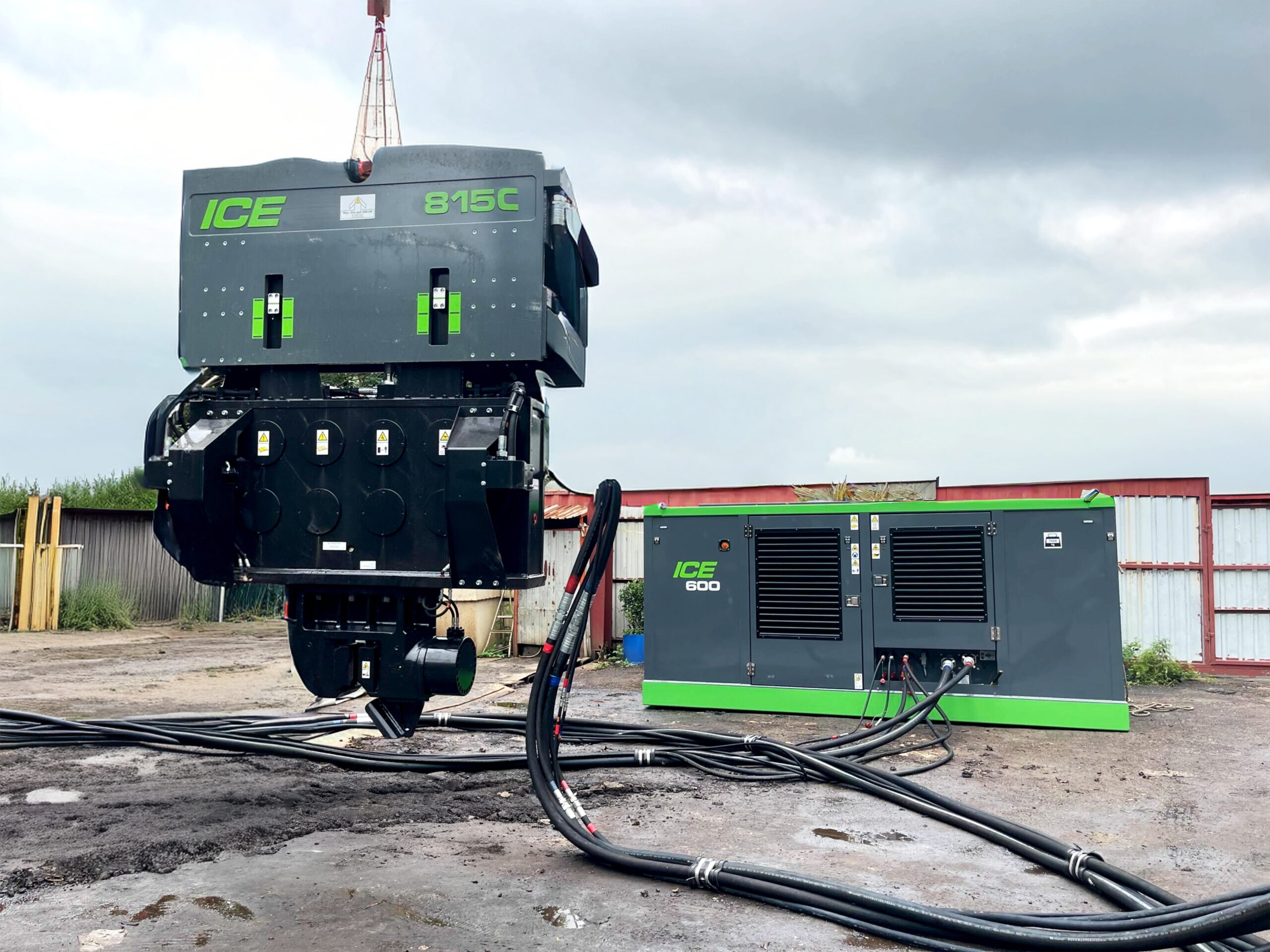

1. ICE 815C Hammer

Model: ICE 815C
Serial Number: 81500133
Type: Hydraulic Vibratory Hammer
Eccentric Moment: 46 kg·m
Maximum Centrifugal Force: Approx. 1250 kN
Operating Frequency: Up to 1570 RPM
Maximum Static Line Pull: 400 kN
Operating Pressure: Up to 350 bar

Get Equipment Details

2. SCC550A Crawler Crane 55 Tons

Model: SCC550A
Type: Crawler Crane
Serial Number: CC0050BJ0196
Maximum Lifting Capacity: 55 Tons
Maximum Lifting Moment: Approx. 203.5 t·m
Main Boom Length: 13 m – 52 m
Fixed Jib Length: 6.1 m – 15.25 m
Maximum Boom + Jib Reach: Approx. 58 m

Get Equipment Details

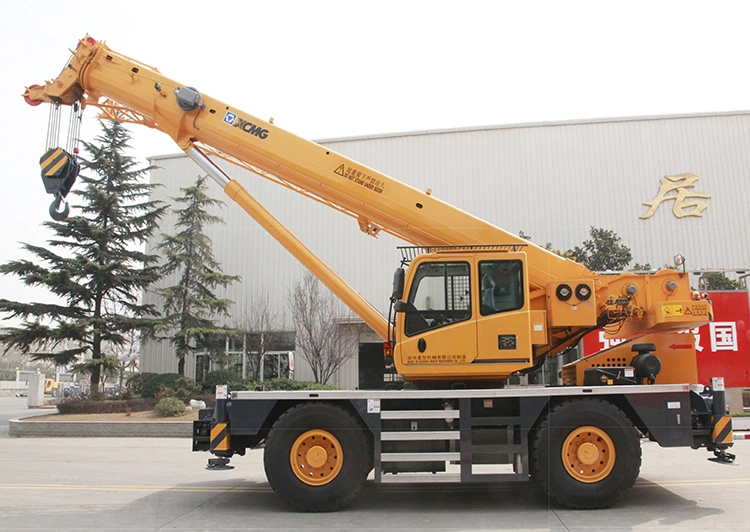

3. 25 Ton Rough Terrain Crane

Model: XCMG RT25
Overall length: 11,703 mm
Overall width: 2,700 mm
Overall height: 3,385 mm
Wheelbase: 3,700 mm
Track (front/rear): 2,200 mm
Front / rear overhang: 1,601 / 1,867 mm
Front / rear extension: 4,484 / 51 mm

Get Equipment Details

4. 90 Ton Crawler Crane

Model: SANY 85 Ton
Max Rated Lifting Capacity: 85 t
Max Lifting Moment: 350 t·m
Boom Length: 12 – 57 m
Jib Length: 9 – 18 m
Longest Boom + Jib Combination: 48 + 18 m
Main/Aux Rope Speed (1st Layer): 0 – 135 m/min

Get Equipment Details

5. PC 200 Excavator Machine

Model: Komatsu PC 200
Serial: DBBB4398
Engine: Komatsu SAA6D107E-1, 6-cylinder turbocharged & intercooled diesel
Engine Power: 110 kW (148 HP) @ 2000 rpm
Displacement: 6.69 L
Hydraulic System: Closed-center load sensing (HydrauMind)
Max Hydraulic Flow: 439 L/min
Max Operating Pressure: 37.3 MPa
Swing Speed: 12.4 rpm

Get Equipment Details

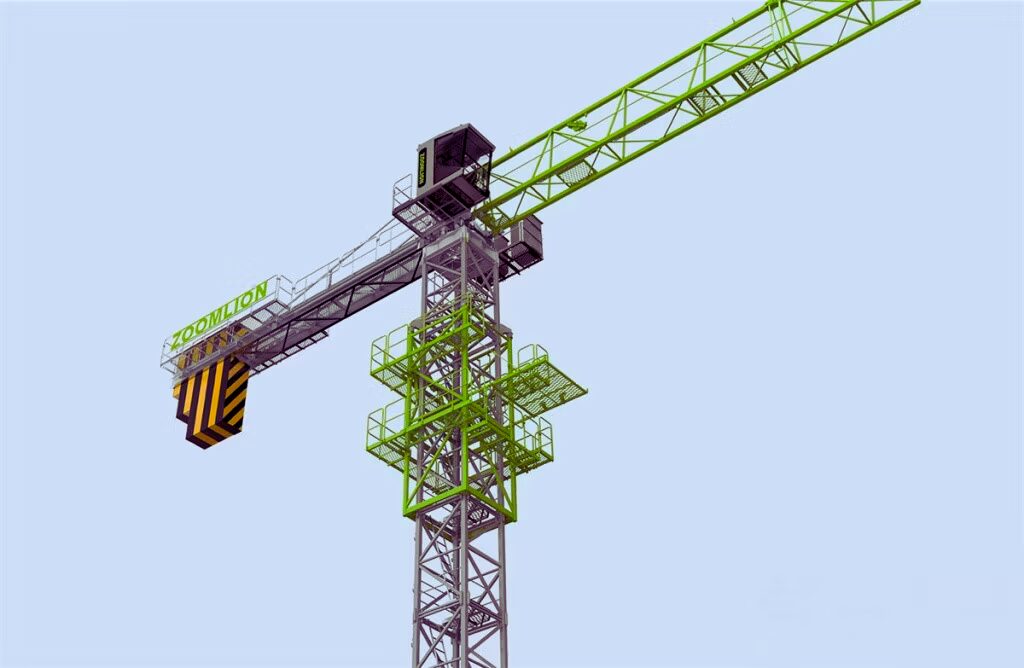

6. Tower Crane

Model: Zoomlion WA6015-8A
Maximum Lifting Capacity (Cantilever End): 1.5 t
Lifting Capacity Range (Model Dependent): 4,000 kg – 100,000 kg
Maximum Independent Height: 40 m
Maximum Tower Height: 219.2 m
Maximum Jib Length: Up to 100 m
Counterweight: 18.6 t

Get Equipment Details

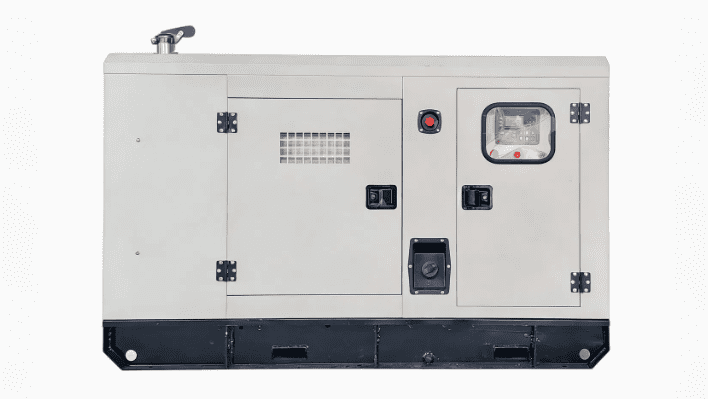

7. 250 kva 2300vd Diesel Generator

Model: HDV250s Huadong
Model: HD6126ZLC4 / HD6126ZLC6
Serial: HDVS1509121
Type: Water-cooling, in-line, 4-stroke, direct injection, dry liner
Rated Output: 257 kW / 350 hp
Rated Speed: 1500 RPM (HD6126ZLC4) / 2000 RPM (HD6126ZLC6)
Number of Cylinders: 6
Firing Order: 1-5-3-6-2-4
Intake Type: TCI

Get Equipment Details

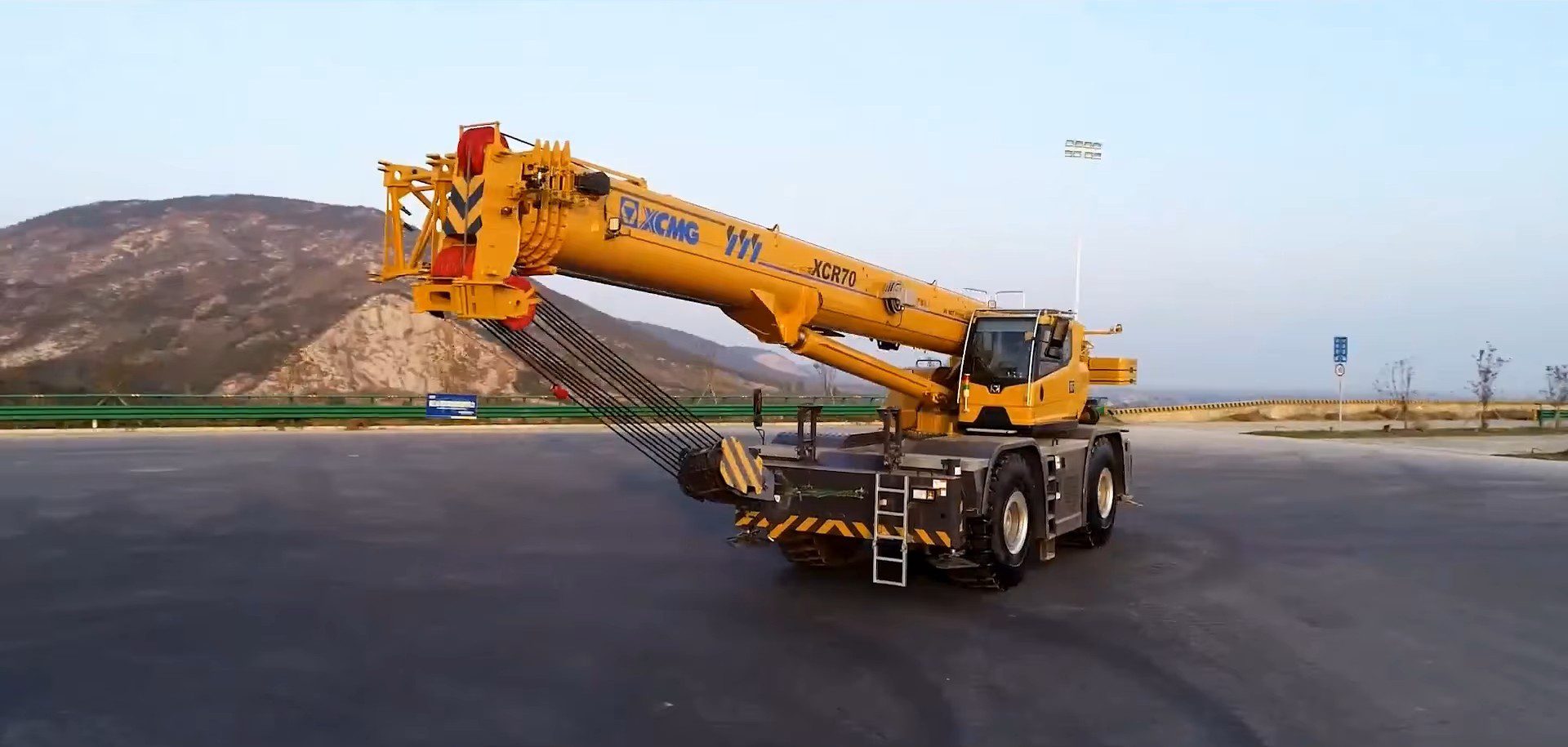

8. XCMG 60 Ton Mobile Crane

Model: XCMG RT 60
Overall Dimensions (L × W × H): 14,354 × 3,290 × 3,750 mm
Wheelbase: 4,000 mm
Track (Front / Rear): 2,520 / 2,520 mm
Gross Vehicle Weight: 44,055 kg (6.3 t counterweight) / 46,755 kg (9 t counterweight)
Axle Load (1st / 2nd): 25,298 / 18,757 kg or 24,252 / 22,503 kg
Engine: SC9DK260.1G3 / QSB6.7-C260-30

Get Equipment Details

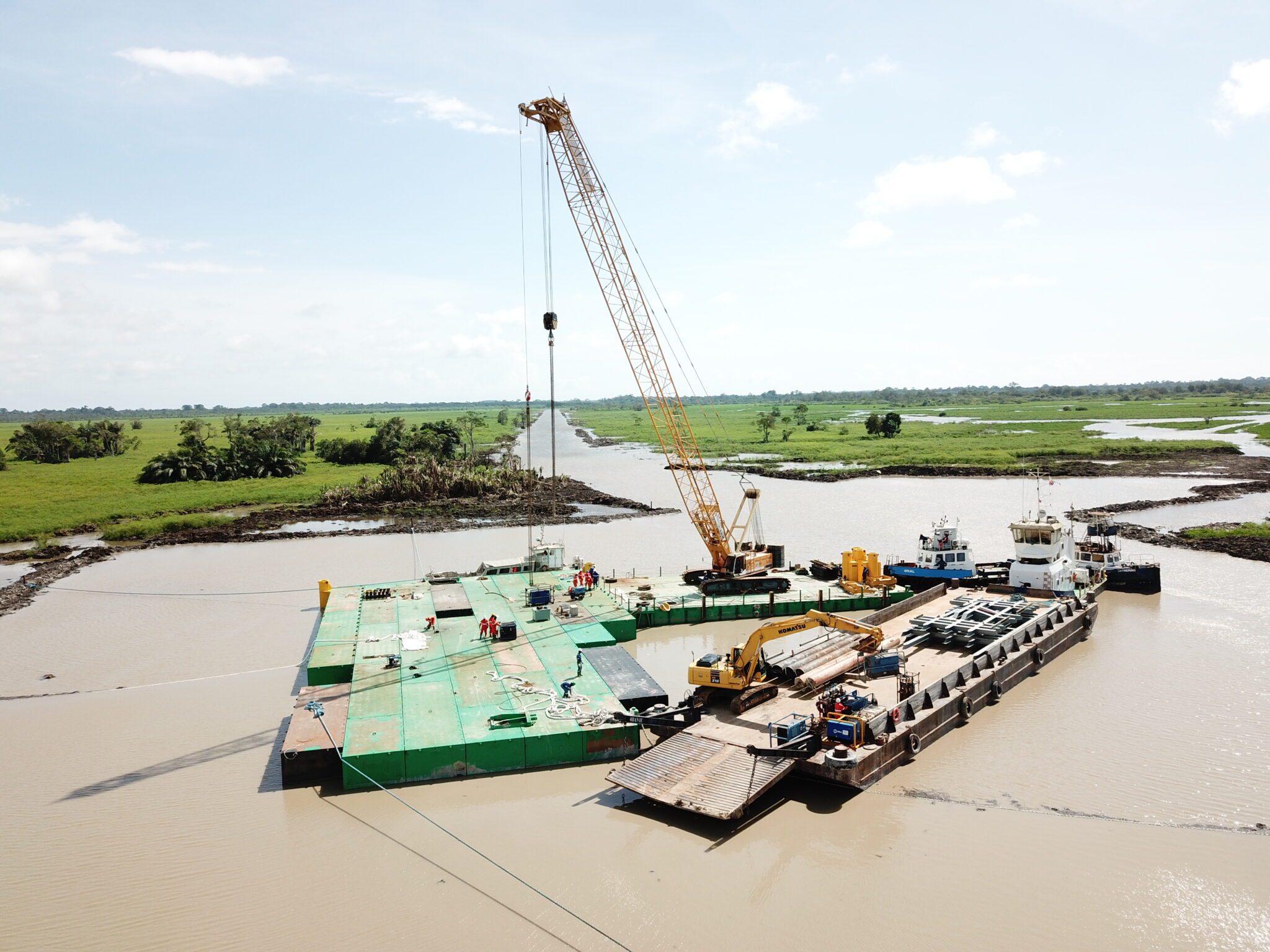

9. Floating Barge

Crane Capacity:
Grab Operation: Max. 12.5 t
Hook Operation: Max. 13.5 t
Main Dimensions:
Boom Length: 23.0 m + 7.0 m
Stick Length: 14.5 m + 3.0 m
Max. Outreach: 35.9 m
Lifting Height: 43.7 m
Operating Weight:
Crane Upper (incl. counterweight): 179 t
Transloading Performance (Grab Mode):
Up to 80 cycles/hour
Up to 13,500 t/day
Peak Performance: 1,000 t/hour

Get Equipment Details

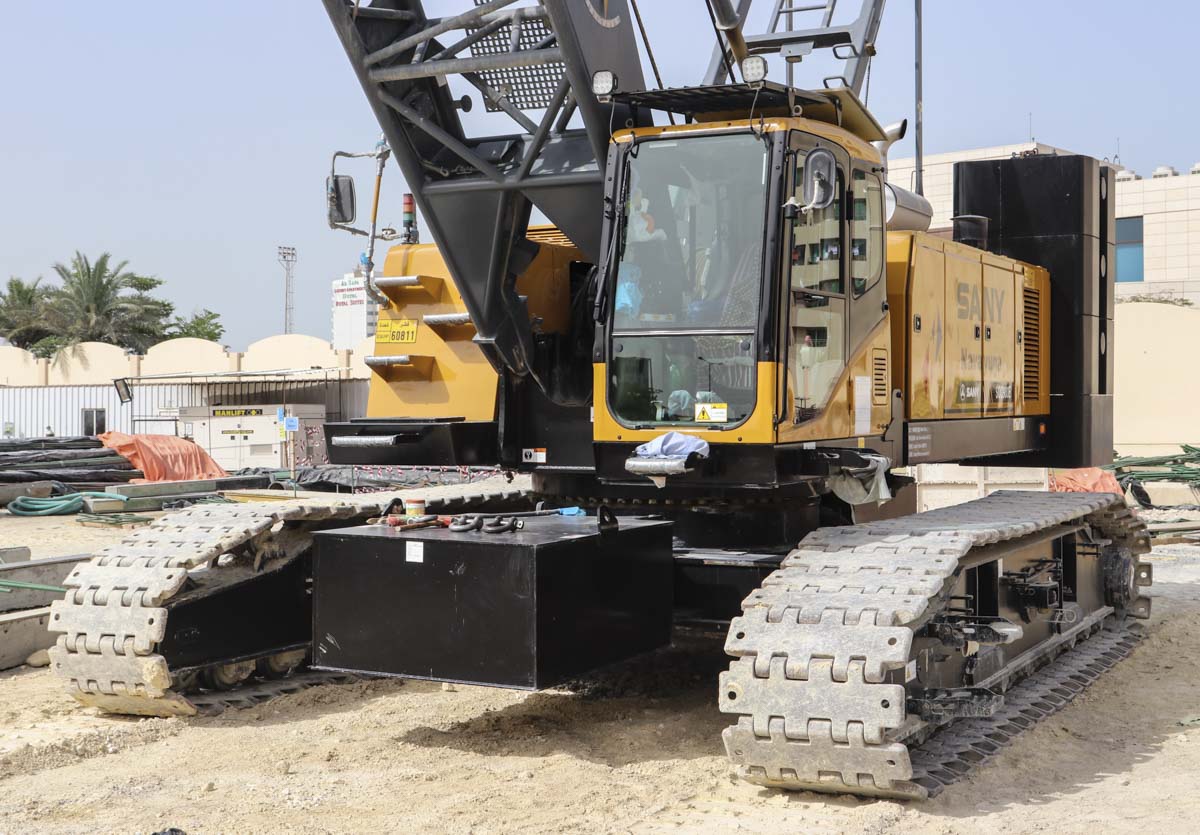

10. 55 Ton Crawler Crane

Model: SANY 55 Ton
Max Rated Lifting Capacity: 55t
Max Lifting Moment: 350 t·m
Boom Length: 12 – 57 m
Engine Power: 154 kW @ 2200 rpm
Max Travel Speed: 1.5 km/h
Gradeability: 30%
Hydraulic System Pressure: 32 MPa (main system)

Get Equipment Details

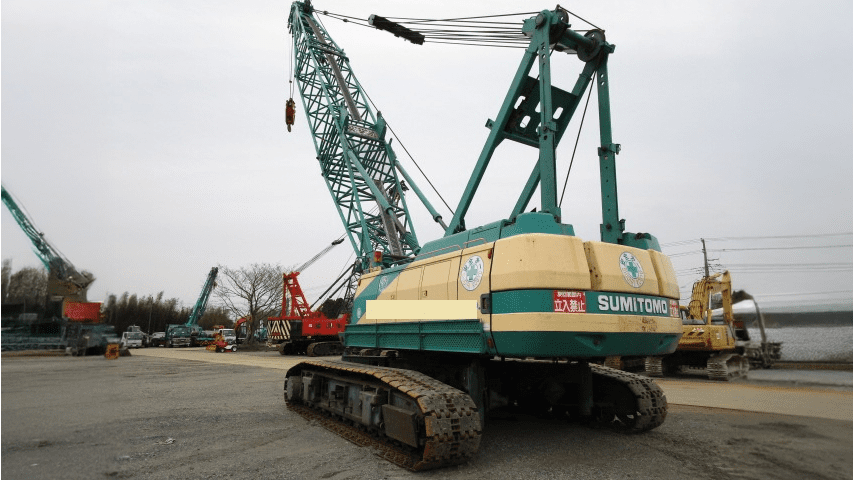

11. 80 Ton Crawler Crane

Model: SUMITOMO 80 Ton
Max Rated Lifting Capacity: 75 t
Max Load Moment: 286 t·m
Boom Length: 13 – 58 m
Engine Rated Power: 153 – 155 kW
Total Operating Weight: 61 t
Max Single Unit Transport Weight: 37 t

Get Equipment Details

12. Wheel Loader

Engine: Cummins QSB6.7, 6-cylinder turbocharged
Max Gross Power: 175 hp (129 kW) @ 2,100 rpm
Peak Torque: 620 lb-ft (841 Nm) @ 1,400 rpm
Operating Weight: 35,260 lb (15,994 kg)
Bucket Capacity: 3.5 yd³ (2.7 m³)
Breakout Force: 26,977 lbf (120.0 kN)
Tipping Load (Straight): 23,876 lb (10,830 kg)

Get Equipment Details

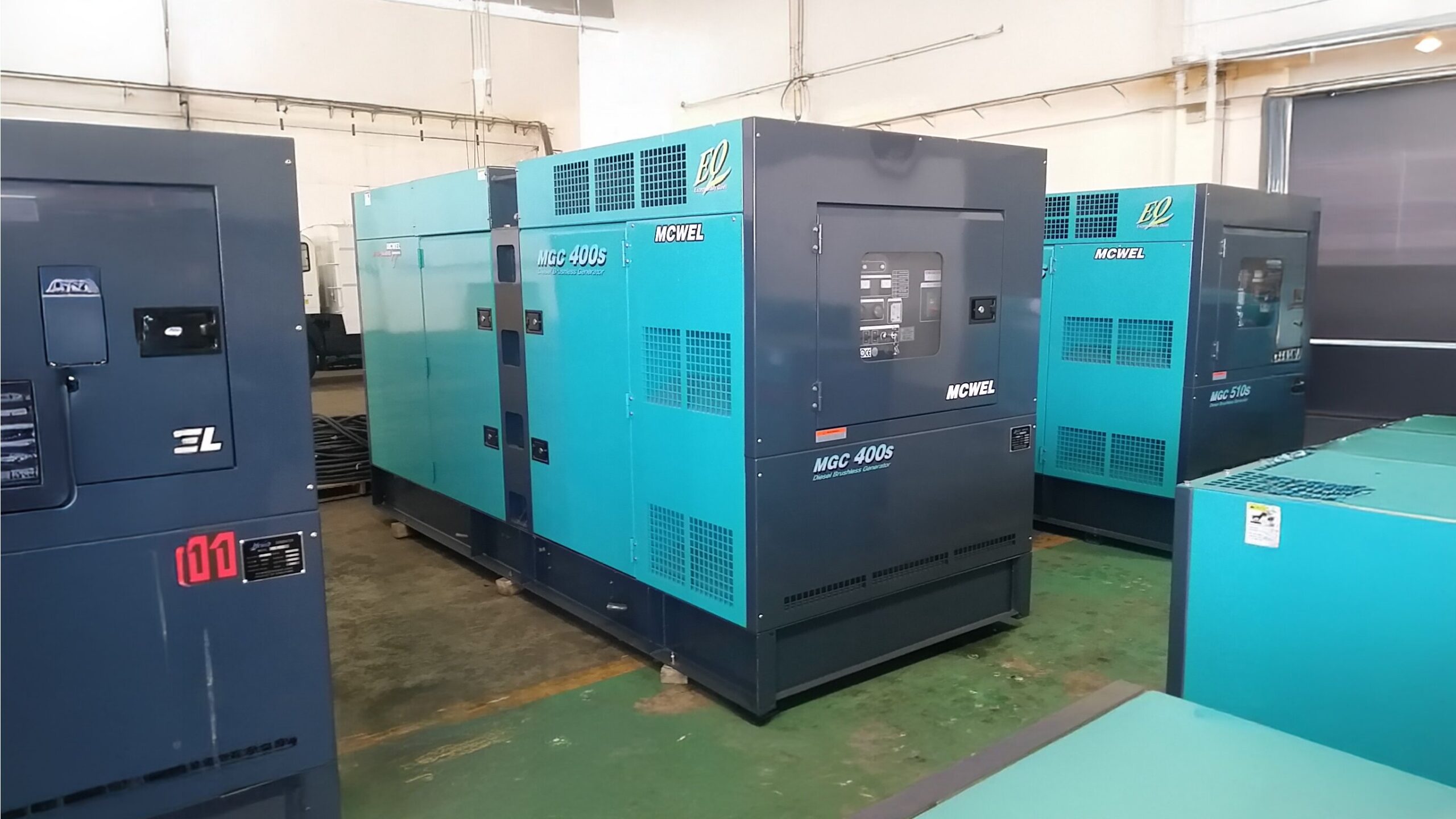

13. 400 kva 2300vd Diesel Generator

Model: MGC400s McWel
Prime Power: 450 kW / 400 kVA
Standby Power: 450 kW / 500 kVA
Phase: 3 Phase
Fuel Consumption (75% / 50% Load): 48 / 33 L/hr
Rated Voltage: 400 / 440 V, 200 / 220 V
Frequency: 50 / 60 Hz

Get Equipment Details

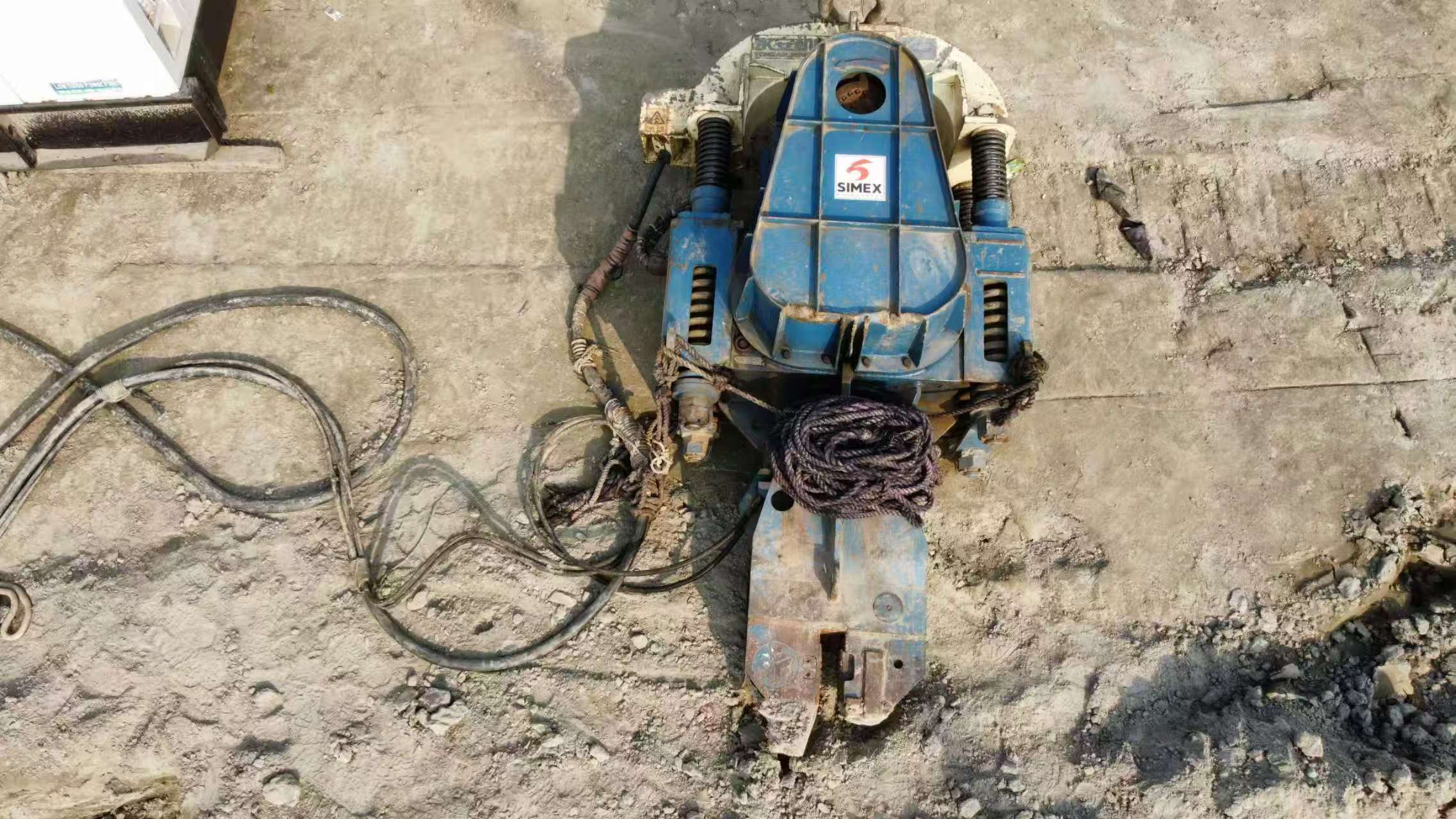

14. DZ-90 Electric vibratory hammer

Model: DZ-90
Serial: ZA180603-2W
Type: Electric Vibratory Hammer
Motor Power: 90 kW
Eccentric Moment: 573 Nm
Operating Speed: Up to 960 RPM
Vibration Amplitude: 6.6 mm
Maximum Line Pull Force: 254 kN

Get Equipment Details

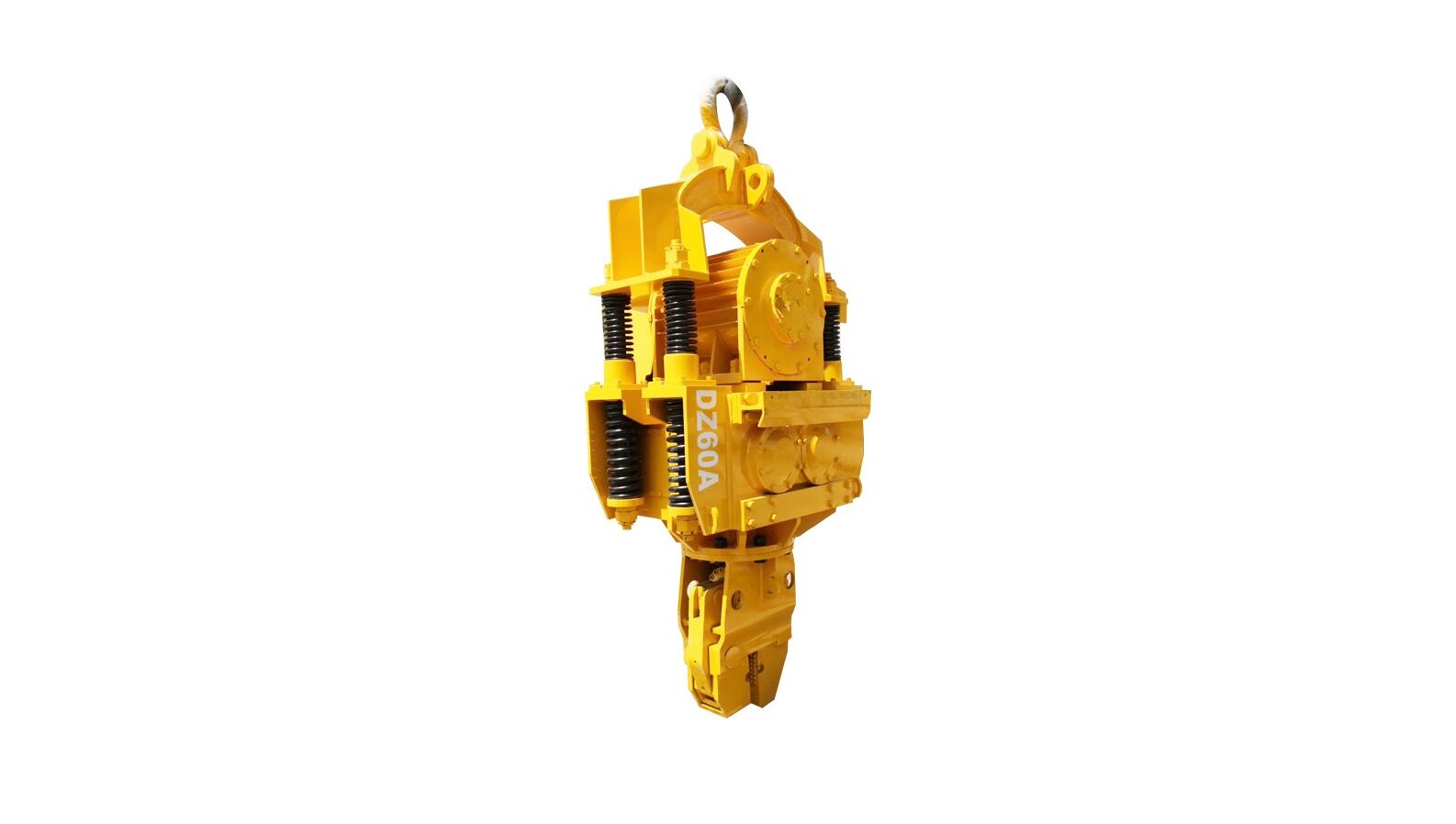

15. DZ-60 Electric vibratory hammer

Model: DZ-60
Type: Electric Vibratory Hammer
Motor Power: 60 kW
Eccentric Moment: 487 Nm
Vibration Amplitude: Approx. 7 mm
Maximum Line Pull Force: Approx. 215 kN
Weight (without clamp): Approx. 4,500 kg

Get Equipment Details

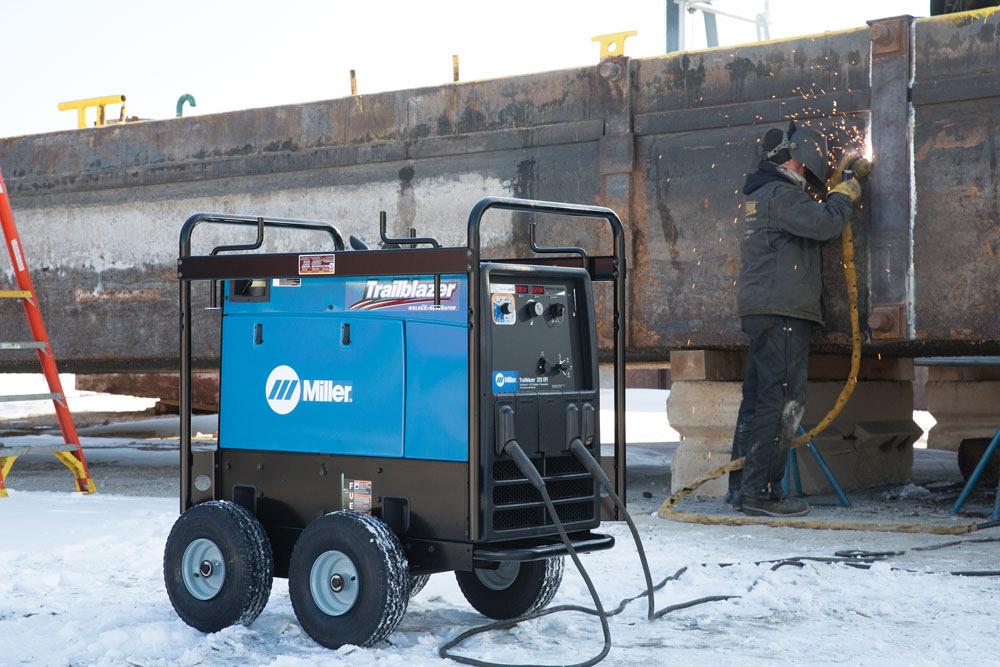

16. Mobile Welding Setup

Welding Current Range: 5 – 140 A (DC output)
Duty Cycle: 100% @ 140 A
Input Voltage: 1~ 110–230 V / 50–60 Hz
Application Range: 20 – 114.3 mm (0.787" – 4.500")
Power/Gas Cable Length: 7.0 m
Weight (Mobile Welder): 15.6 kg
Dimensions (W×D×H): 264 × 540 × 376 mm
IP Rating: IP23S

Get Equipment Details

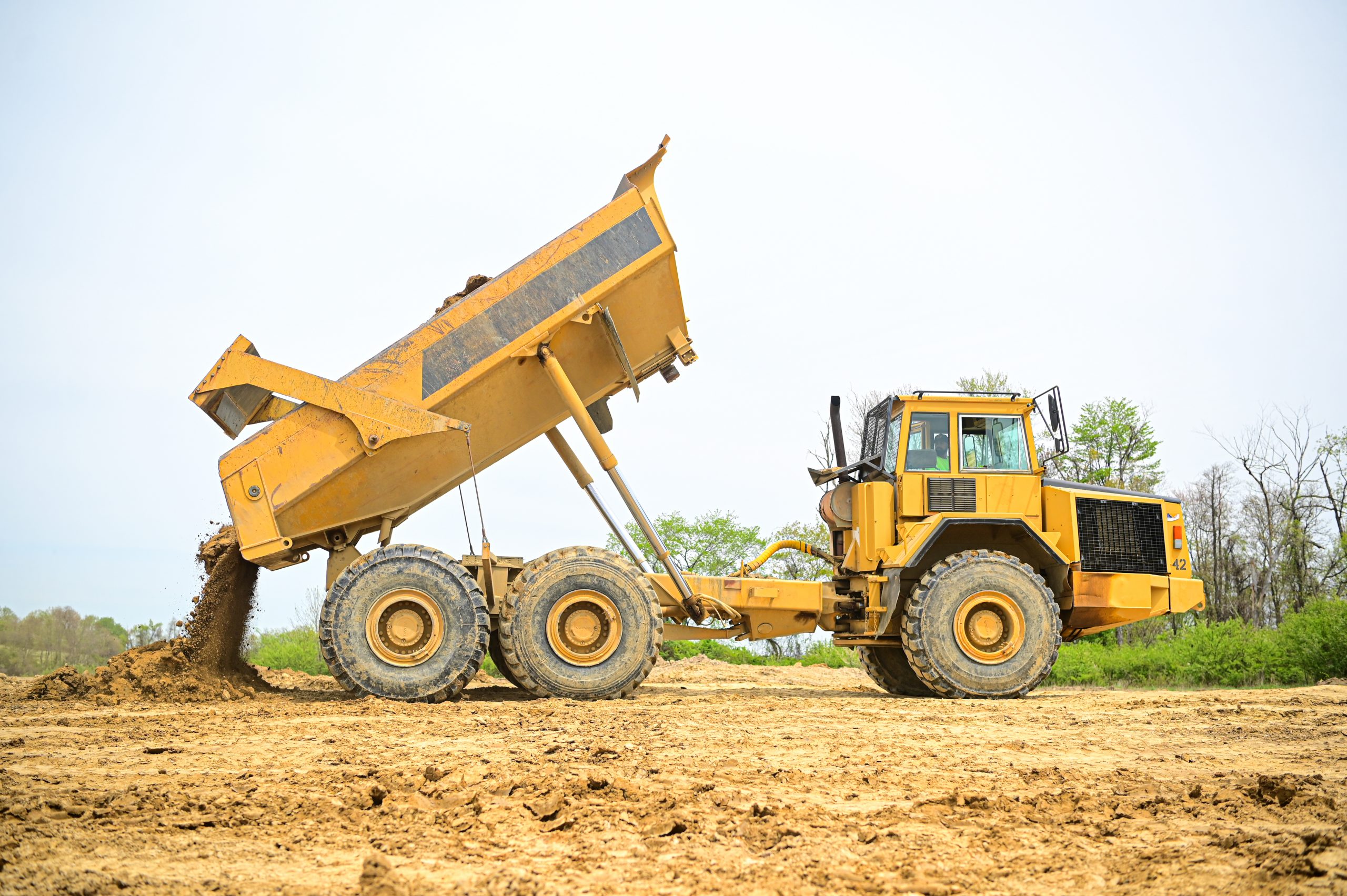

17. Dump Truck

Engine: 6-cylinder direct injection diesel, 6.7 L (QSB 6.7)
Max Power: 123 kW (165 HP) @ 2,000 rpm
Max Torque: 732 Nm @ 1,400 rpm
Transmission: ZF 6WG160, smooth shift with single-stage torque converter
Braking Pump: 17.6 L/min, 175 bar
Tipping Angle: 84°
Body Plate Thickness: 6 mm (front/side/bottom)
Body Raise Time (Laden): 9.7 sec

Get Equipment Details

18. 375 kva 2300vd Diesel Generator

Model: UA DONG
Serial: HDVS1604090
Prime Power: 360 kW / 400 kVA
Standby Power: 200 kW / 300 kVA
Phase: 3 Phase
Cooling System: Water-cooled, 44L coolant capacity
Electrical System: 24 VDC
Electronic Governor for stable frequency output

Get Equipment Details

19. Batching Plant

Production Capacity:
26 m³/h – 180 m³/h (model dependent)
Mixer Capacity:
500 L – 3000 L nominal mixer volume
Motor Power:
18.5 kW – 2×55 kW configuration
Aggregate Size:
Up to Ø80 mm maximum
Silo Capacity:
50 t – 200 t per silo option
Aggregate Bins:
3 – 4 bins (up to 4×25 m³ capacity)

Get Equipment Details
