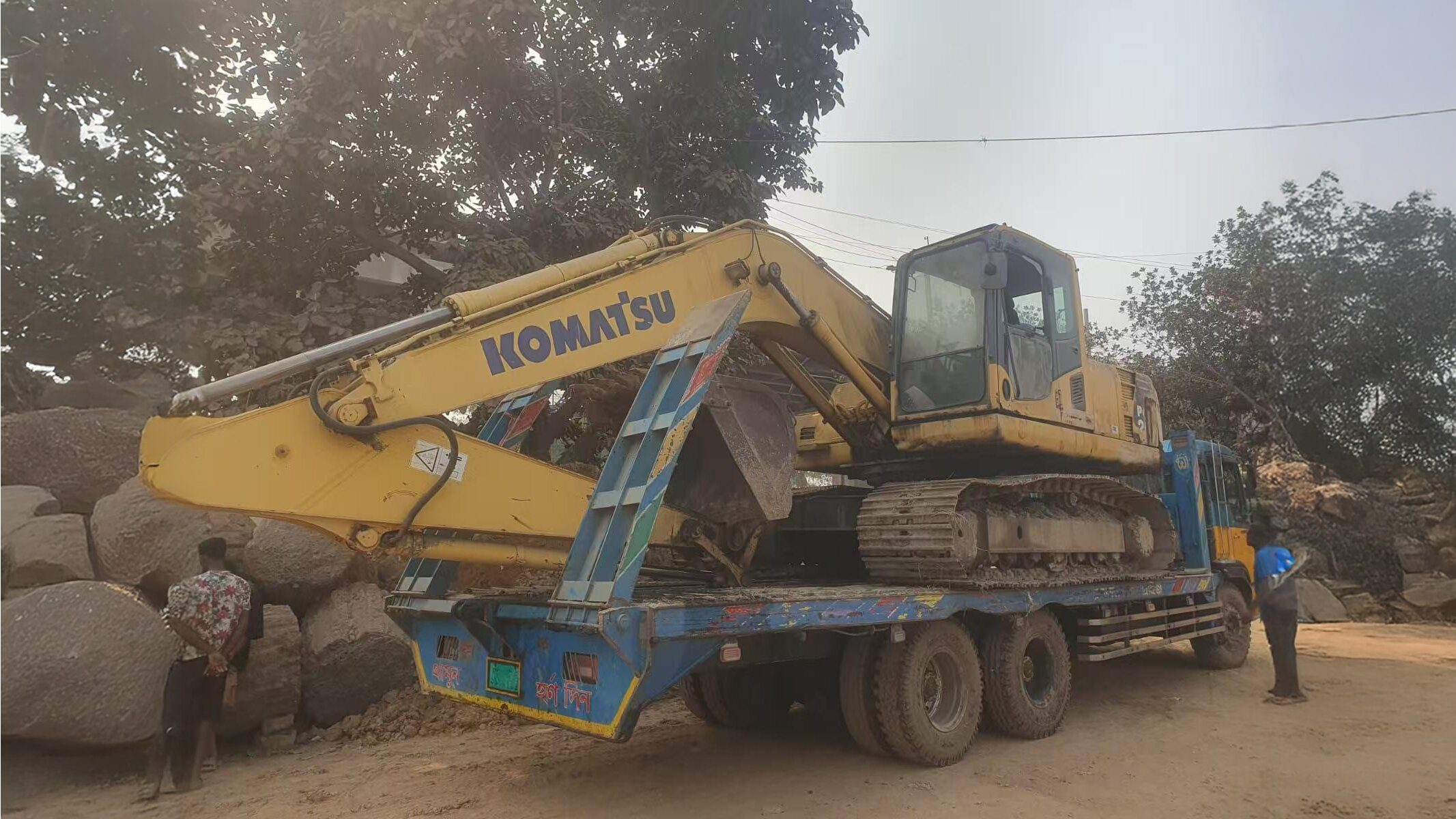

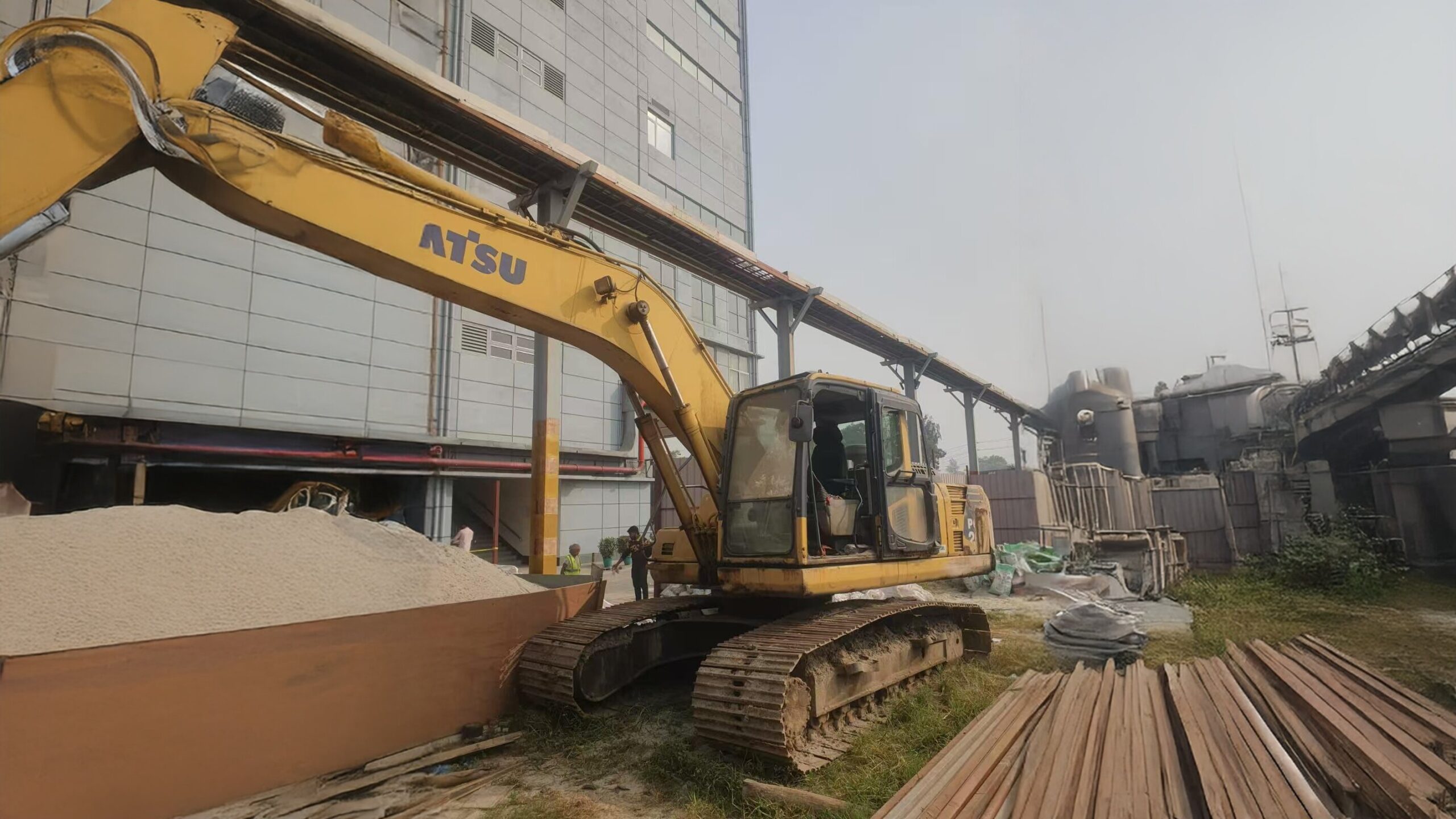

PC 200 Excavator Machine

Key Specification

• Engine: Komatsu SAA6D107E-1, 6-cylinder turbocharged & intercooled diesel

• Serial: DBBB4398

• Engine Power: 110 kW (148 HP) @ 2000 rpm

• Displacement: 6.69 L

• Hydraulic System: Closed-center load sensing (HydrauMind)

• Max Hydraulic Flow: 439 L/min

• Max Operating Pressure: 37.3 MPa

• Swing Speed: 12.4 rpm

• Swing Torque: 6,900 kg·m (49,907 ft·lbs)

• Max Drawbar Pull: 178 kN

• Max Travel Speed: 5.5 km/h

• Gradeability: 70% (35°)

• Fuel Tank Capacity: 400 L

• Hydraulic Tank Capacity: 135 L

• Operating Weight: Approx. 18,000 – 21,000 kg (depending on configuration)
